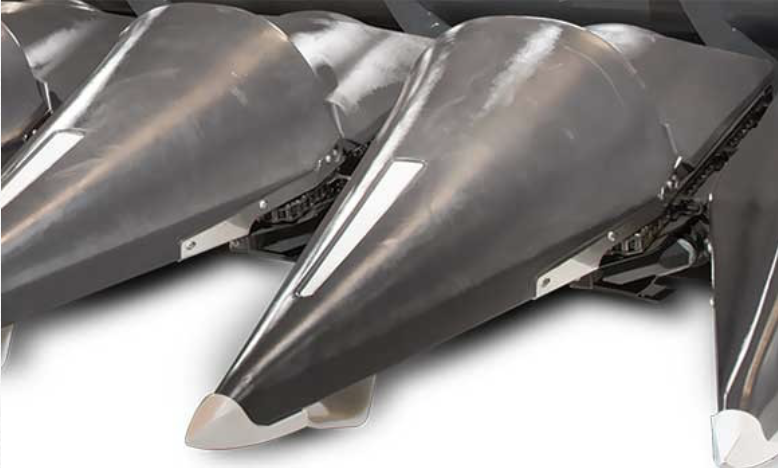

Low-density polyethylene construction of snouts and gatherers absorbs shock from ears, reducing number of bouncing ears and amount of butt shelling – the corn harvested makes it into the combine rather than getting left behind. Each snout is equipped with reflective markers to improve visibility to snouts in low light situations.

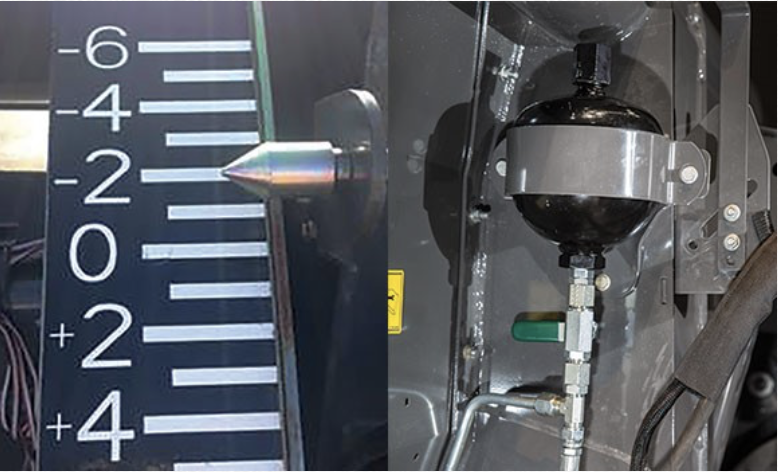

Heads are equipped with hydraulic header fore-aft pitch capability, adjustable on-the-go from the cab. This allows the operator to “match” the header-feeding angle to the combine height for optimized feeding and exceptional downed corn performance. A hydraulic accumulator provides protection for the combine and header when running the header on the ground.

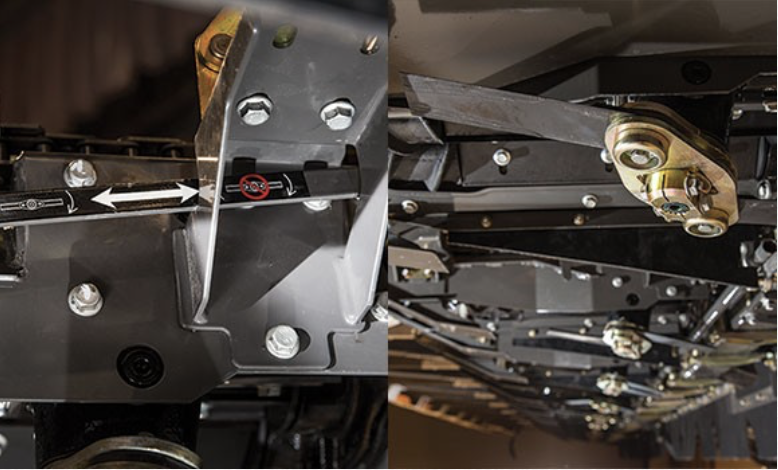

Available in chopping or non-chopping models, the header allows you to operate in almost any field regardless of residue management preferences. The chopping heads allow the operator to engage or disengage chopping capabilities at each row unit with an easy-to-use lever.

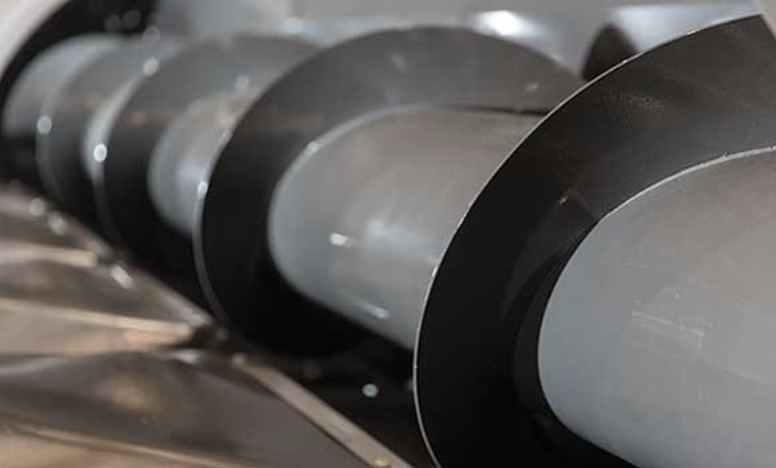

The large 20″ diameter auger reaches over the gatherer and row unit for maximum capacity and efficient feeding in any condition. Also, the auger flighting pitch has increased while the auger speed has decreased. This allows the auger to gently convey more crop, leading to reduced header loss while retaining maximum capacity.

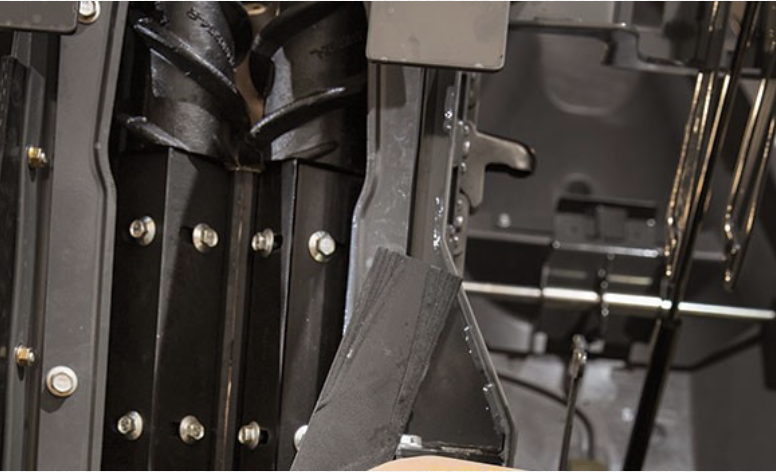

Stalk rolls have point-to-point contact for improved feeding and greater performance. Additionally, the point-to-point design of the rolls ensures the stalk is pulled through without the side-to-side vibration associated with an interlocking roll design. This smoother operation leads to reduced header loss levels.

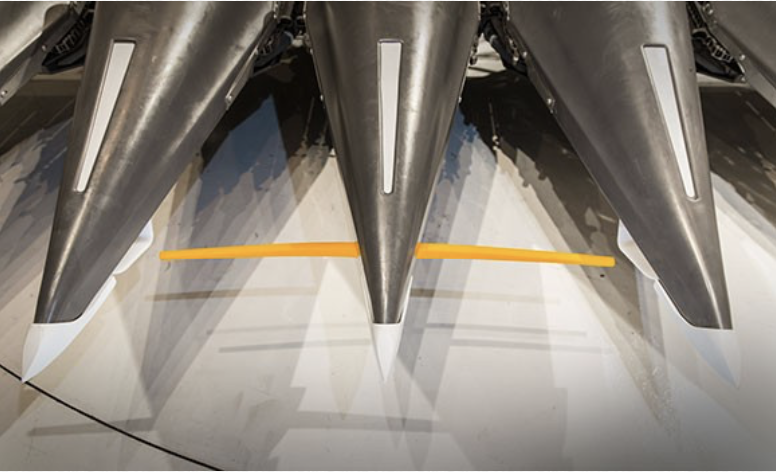

3300 corn headers are prewired for additional accessories such as the Headsight auto header height sensors, and Reichhardt row guidance packages. Adding either of these additional kits will greatly enhance the ease of use for the corn header by helping the operator control the header or combine while running through the field. Prewiring the header means installation of these kits is simply plug and play when utilizing the header on a Gleaner S9 combine.
